Jenkins Architecture: Controllers & Distributed Agents

Jenkins operates on a distributed master-agent architecture to scale build throughput.

• Jenkins Controller (Master): Handles configuration, hosts the web console, orchestrates build triggers, and schedules tasks. It does not run resource-heavy builds itself to prevent instability.
• Jenkins Agents: Lightweight Java worker processes that execute tasks assigned by the Controller. They can run on bare-metal servers, virtual machines, or spin up dynamically inside Kubernetes clusters as ephemeral pods.

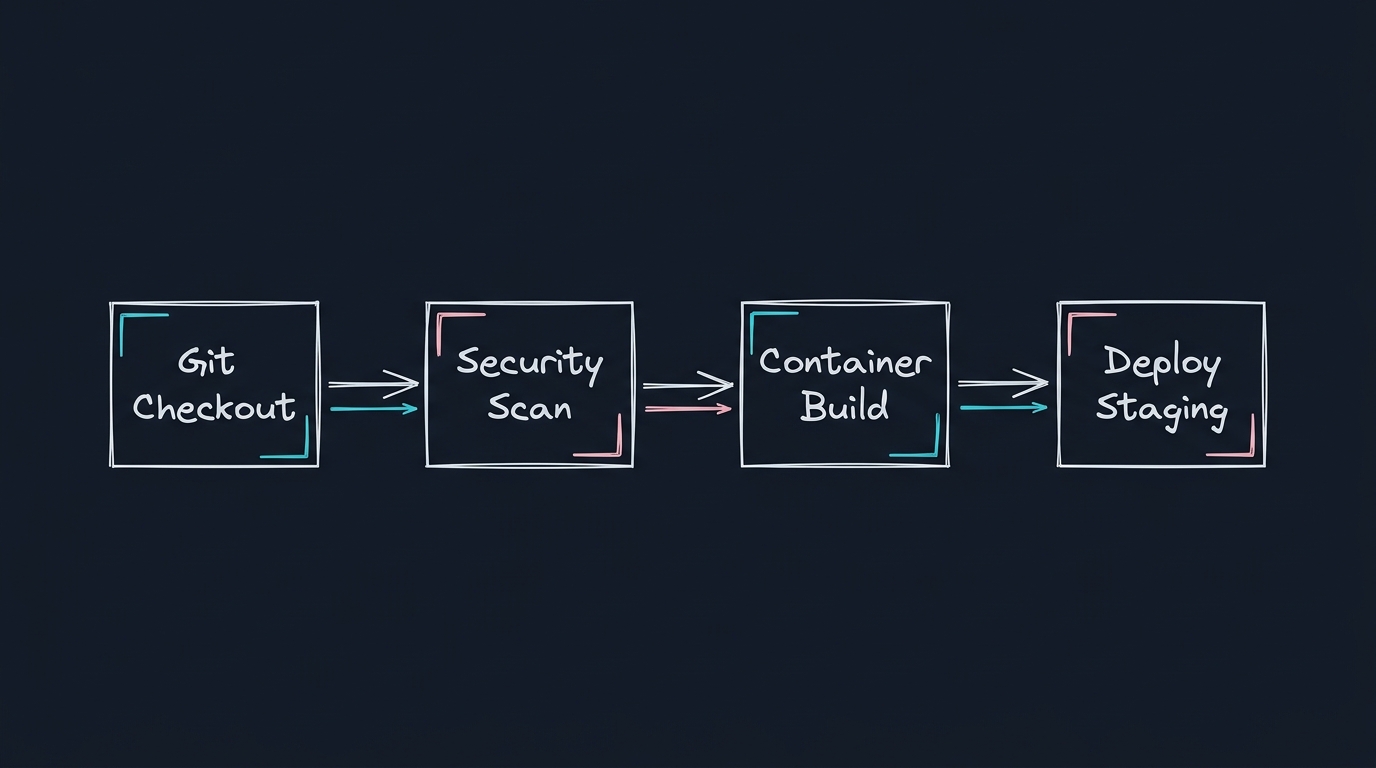

Visualizing a CI/CD Pipeline Execution

---

Technical Q&As (CI/CD Pipelines)

Q1: What is the difference between a Declarative and a Scripted Jenkins pipeline? Which should you use?

Answer: Both define build steps, but they use different paradigms:

1. Declarative Pipeline: Introduced to simplify pipeline authoring. It uses a strict, structured layout (defined inside a pipeline { ... } block). It enforces a clean hierarchy of stages, steps, and post-actions, reducing scripting errors. It is the recommended standard for modern pipelines.

2. Scripted Pipeline: The original paradigm. It uses an imperative Groovy-based layout. It offers complete access to the Groovy language, allowing for complex loops and dynamic functions, but is harder to read, maintain, and secure.

Q2: How do you prevent sensitive credentials (like Docker Hub passwords or SSH keys) from leaking into Jenkins console logs?

Answer: Jenkins provides a credentials store to secure secrets.

• Credentials Store: Store keys in the encrypted database.
• Credentials Binding: Use the withCredentials block in your Jenkinsfile. This temporarily binds secrets to environment variables during the block execution and automatically masks their values with asterisks () in the build console logs:

stage('Deploy') {
    steps {
        withCredentials([usernamePassword(credentialsId: 'docker-hub-creds',
                                         usernameVariable: 'DOCKER_USER',
                                         passwordVariable: 'DOCKER_PASS')]) {
            sh "docker login -u ${DOCKER_USER} -p ${DOCKER_PASS}"
        }
    }
}

Q3: What are Jenkins Shared Libraries, and why are they critical for managing multiple enterprise repositories?

Answer: In large companies with hundreds of microservices, copying and pasting Jenkinsfiles across repositories creates configuration drift.

• Shared Libraries: Allow you to write common, reusable build steps in a separate git repository.
• Usage: Import the library at the top of your Jenkinsfile and call custom steps:

@Library('shared-global-pipeline') _
buildSpringApp {
    imageName = 'billing-service'
    port = 8080
}

This standardizes security scanning, linting, and image pushing policies globally.

---

Jenkins Pipeline Debugging Scripts

Troubleshooting Pipeline Code

A common error is pipeline lockups due to resource bottlenecks on worker nodes. To check available agent executor slots:

# Run via Jenkins Script Console to inspect active threads
for (a in Jenkins.instance.computers) {
    println("Agent: " + a.displayName + " - Offline: " + a.offline)
}
